Product Name: UL,FCC T10 LED Tube light,5ft,20w
UL,FCC, ROHS T10 LED Tube light factory\manufacturer price for train, parking lot, office, meeting room application

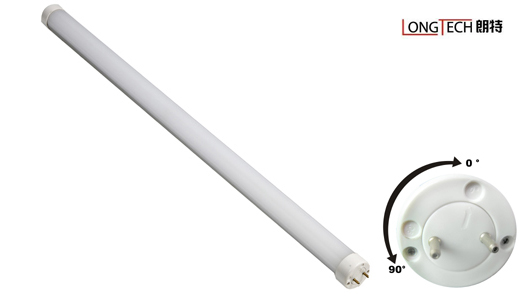

LongTech T10 UL Listed SMD LED Tube light use high brightness 3528 SMD as the light source, and it not only gets the UL certificate, but also approves by CUL and FCC. The rotatable end cap can adjust within 0-90 degree, which is very convenient for customer to use. The available length is 2 foot, 3 foot, 4 foot and 5 foot.
LongTech T10 UL listed led tube features with high brightness,FCC, RoHS certificate, beam angle can be changed from 0-90 degree. Frosted cover and transparent cover available, UL number E336541,E336542.
led tube light Parameter:
| P/N | Color | LED Quantity(PCS) | Light Source | Work Voltage(V) | Power(W) | Luminous Flux(lm) | Diameter(mm) |
Weight
(KG)
|
Package Dimension(mm) | Length(mm) |
| LT-TL30A006 | Pure White | 120 | 3528SMD | AC110-277 | 8 | 530 | 30 | 0.22±10% | 680*210*290mm 1/24 | 600 |
| Warm White | 505 | |||||||||
| Commercial White | 530 | |||||||||
| LT-TL30A009 | Pure White | 180 | 3528SMD | AC110-277 | 12 | 790 | 30 | 0.34±10% | 980*210*290mm 1/24 | 900 |
| Warm White | 750 | |||||||||
| Commercial White | 790 | |||||||||
| LT-TL30A012 | Pure White | 240 | 3528SMD | AC110-277 | 16 | 1100 | 30 | 0.44±10% | 1280*210*290mm 1/24 | 1200 |
| Warm White | 1060 | |||||||||
| Commercial White | 1100 | |||||||||
| LT-TL30A015 | Pure White | 304 | 3528SMD | AC110-277 | 20 | 1450 | 30 | 0.52±10% | 1565*210*290mm 1/24 | 1500 |
| Warm White | 1370 | |||||||||
| Commercial White | 1450 |
Feature
Certificate: UL, CUL, FCC, RoHS. UL number E336541&E336542.
Rotatable cap, 0-90°.
Power Factor (PF): ≥ 0.85.
Range of Color Temperature: Pure white 6000K—7000K, Commercial White 4000—5000K, Warm White 3000K— 3500K.
CRI: 72, can be ≥ 80 according to request.
Working Temperature: -20°C to 40° C.
Aluminum body, PC cover, clear and frost cover available.
Environment friendly, no mercury, no lead, no ultraviolet, no noise and other hazardous substance.
Energy-saving, 3528 SMD UL FCC T10 LED tube can save at least 60% power comparing to the traditional fluorescent tube.
Quick start, no flicker, protecting people’s eyes.
Long life span, ≥ 30,000 hours
Installation Instructions
1.Single Replacement
2.Multiple Replacement
Light Distribusion Curve (4ft length 6000K--7000K)
